Arrow Board Programming (Controller)

Synopsis: Once your arrow board is synchronized and ready to be used, you will need to activate a lamp sequence.

• Level: Medium
• Time required: 5-10 minutes
• Additional equipment required: None

1. Power on the V-Touch arrow board controller

Figure 1 - Power button

2. Choose the lamp pattern you need

Figure 2 - Patterns on the home page

Note: If the pattern you are looking for is not on the home page, you could have the wrong configuration number. You will need to call Ver-Mac Technical Support (1-888-488-7446) to fix this.

Important information:

Ensure you have the correct arrow board selected (trailer-mounted or truck-mount). You can press tools (wrench icon), then controller settings, then controller type.

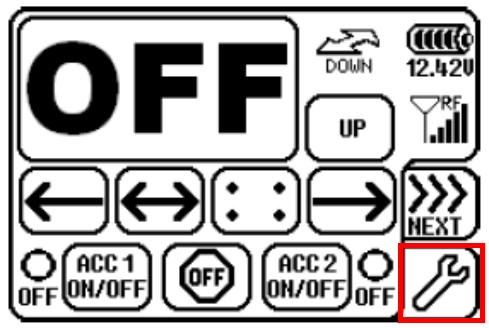

Figure 3 - Wrench icon

Figure 4 - Controller settings

Figure 5 - Controller type

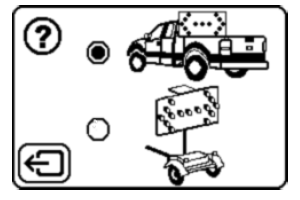

Figure 6 - Arrow board type

You can get information on your arrow board by pressing the information  button and then going to Controller

Figure 7 - Wrench icon

Figure 8 - Information

Figure 9 - Controller information

Figure 10 - Controller information page

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
