How to add a PCMS to JamLogic

Synopsis: When receiving a Ver-Mac message board, you will have the ability to add it to our JamLogic software if the unit is equipped with a modem and data plan.

• Level: Easy
• Time required: Less than 1 minute
• Additional equipment required: None

1. Open JamLogic and press the New Device Wizard

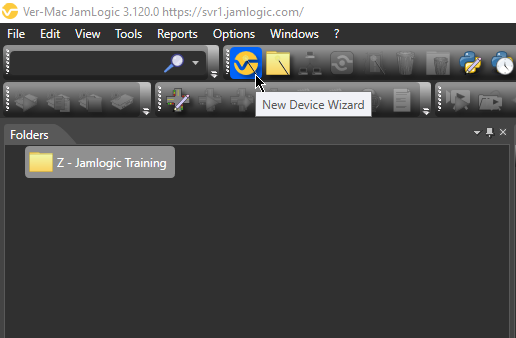

Figure 1 - New Device Wizard

2. Enter the necessary unit information then press Next

2.1. Name & VIN

2.2. Protocol (NTCIP if your unit has a touch screen)

2.3. IP address

2.4. Socket type (UDP or TCP)

2.5. Port 161

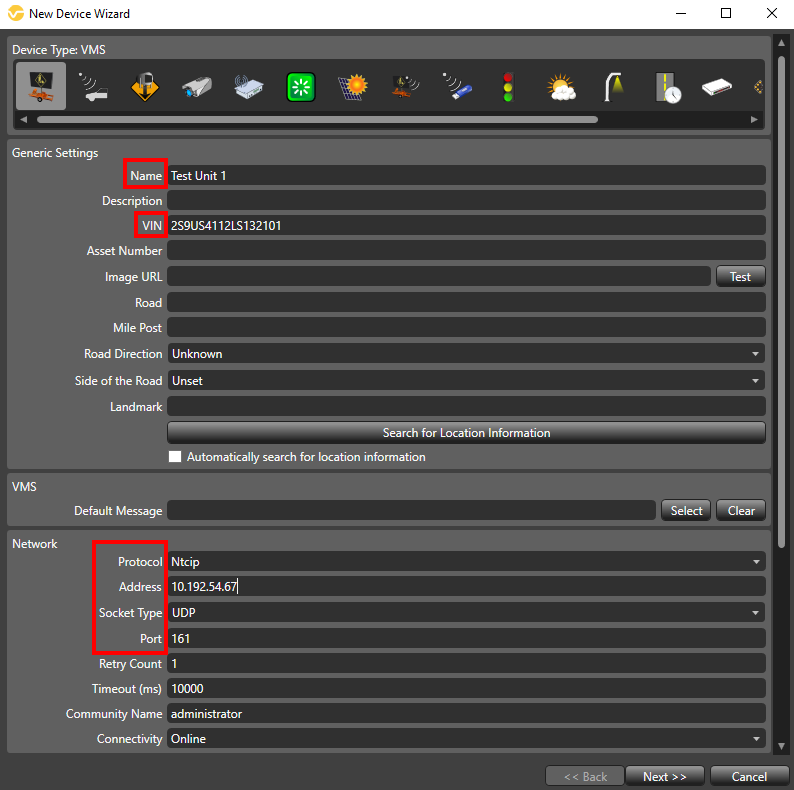

Figure 2 - Unit information

3. When the unit is found, save it

Note: Your unit must be powered on in order to be discoverable

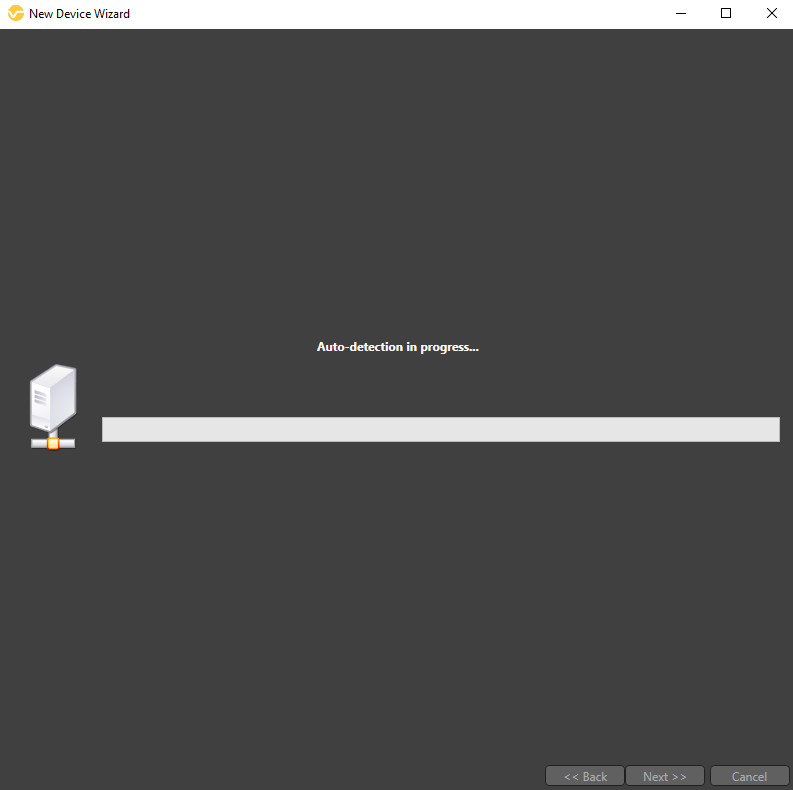

Figure 3 - Unit Search

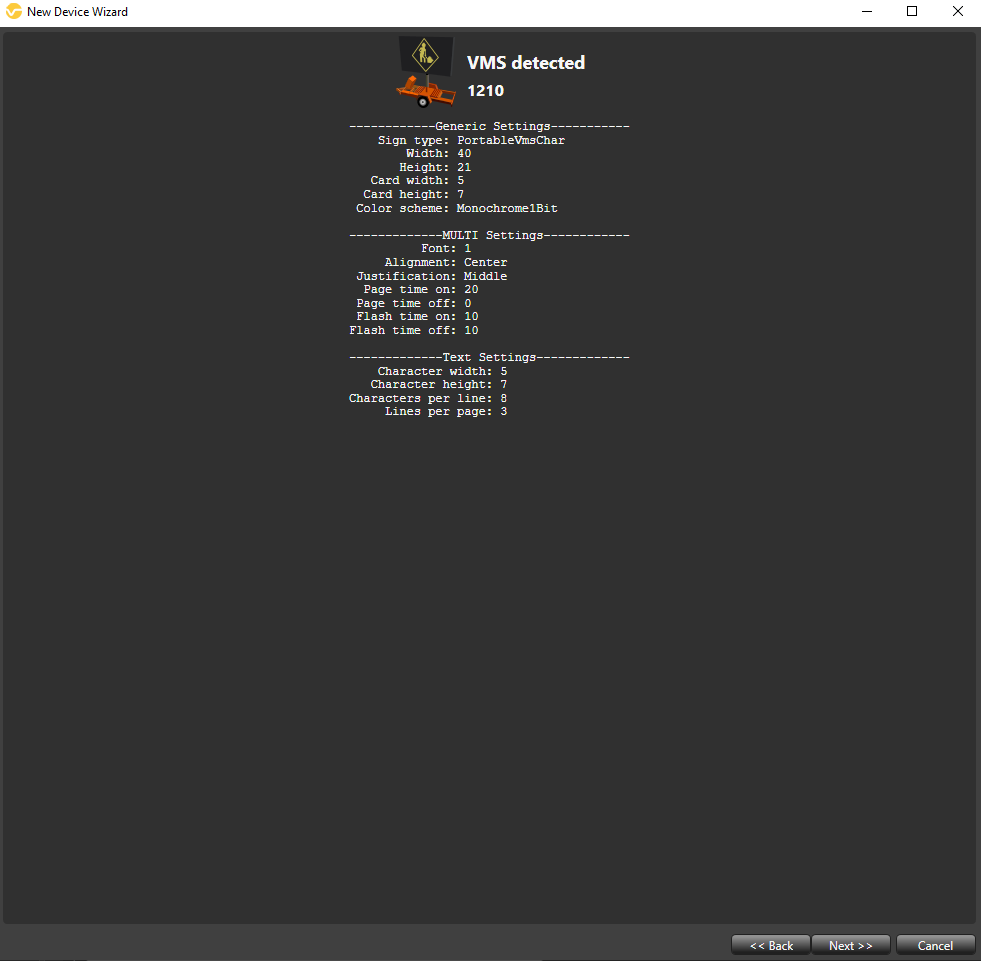

Figure 4 - Unit Detected

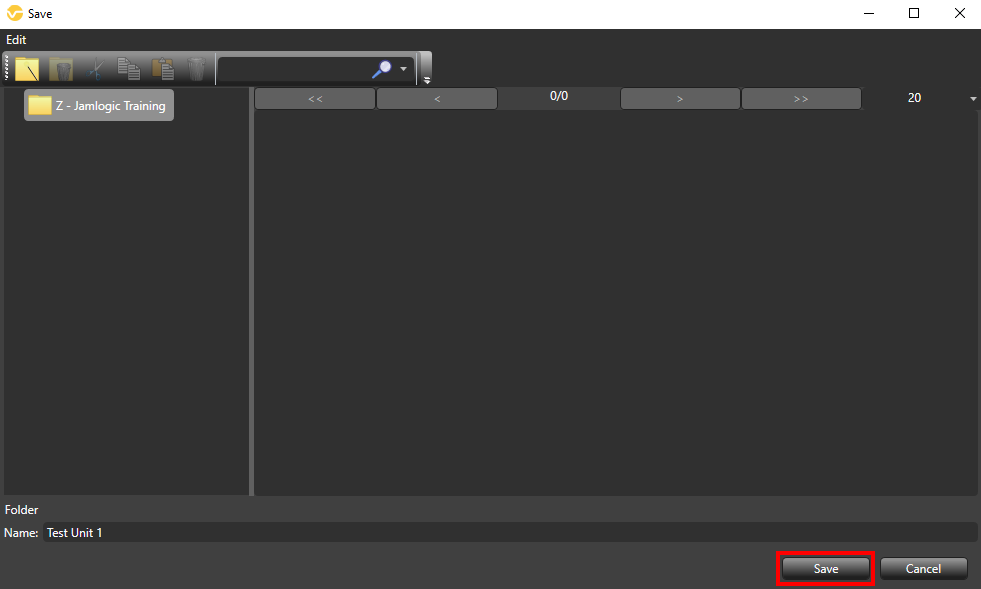

Figure 5 - Save

4. Your unit should now be in JamLogic

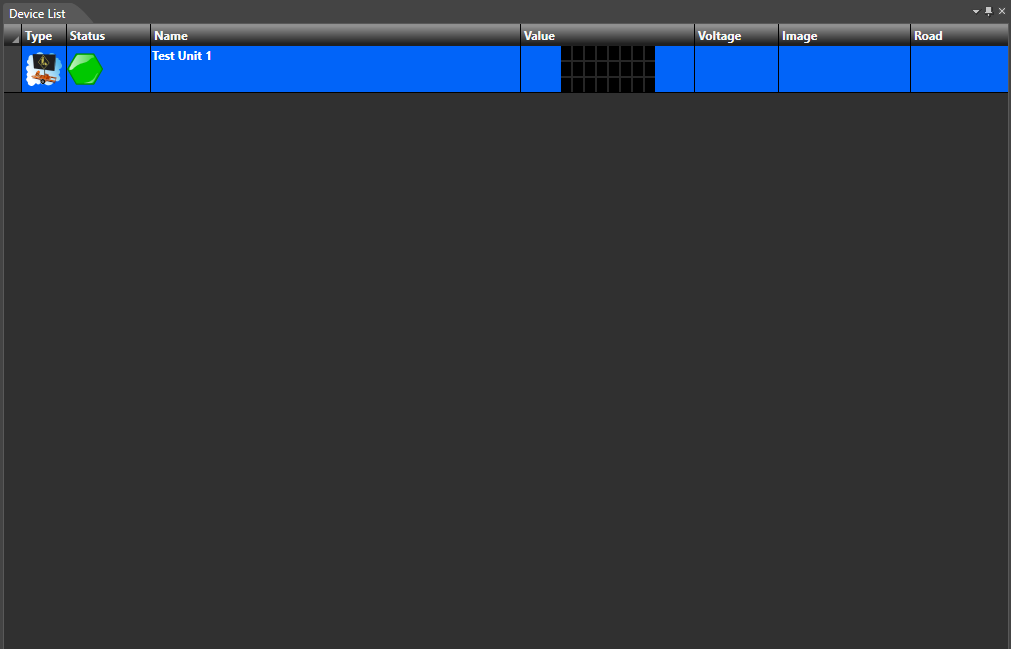

Figure 6 - Unit in JamLogic

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
