How to Create, Save, Activate and Blank Messages on V-Touch Controller

Synopsis: When you receive a Ver-Mac message board, you will have the ability to create, save, activate and blank messages on your board via the V-Touch Controller.

  • Level: Beginner
  • Time required: 1-2 minutes
  • Additional equipment required: None



1. Log into the V-Touch Controller via the Admin login

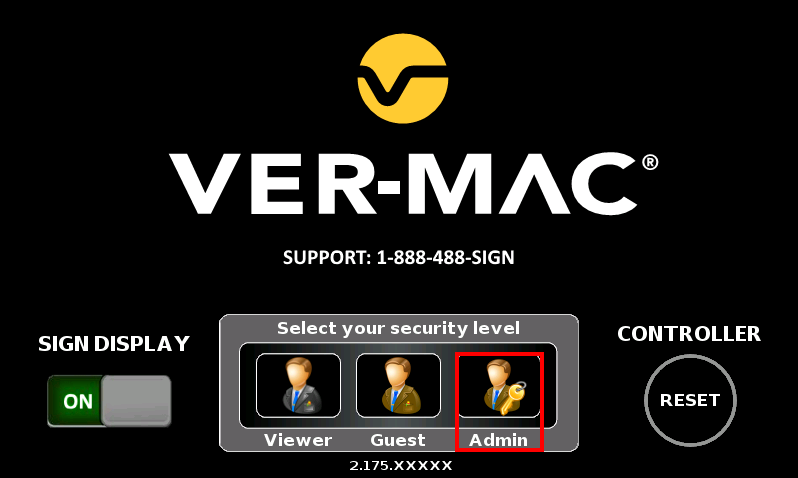

Figure 1 - Login screen



2. Go to Edit Msg

Note: Make sure you have Status OK at the bottom of the screen


Figure 2 - Edit Message

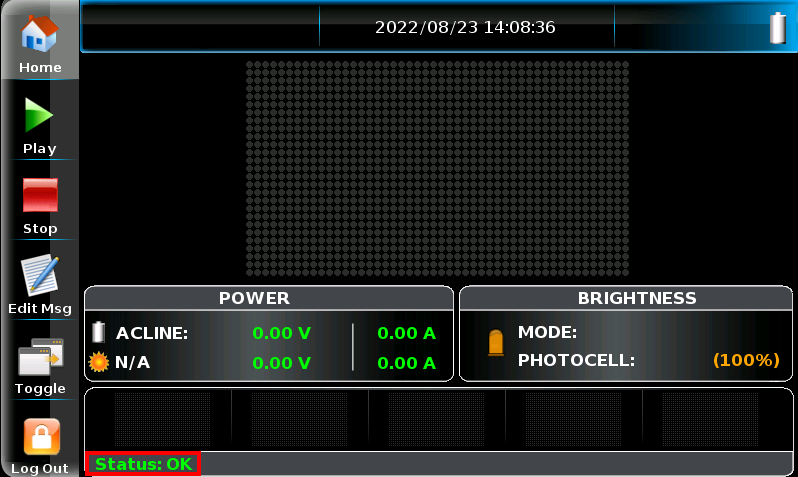

Figure 3 - Status OK



3. Enter your message

Note: If your message needs multiple pages, press the page with a + icon. It is important to know that MTO message boards must have a maximum of 2 pages with all caps letters.

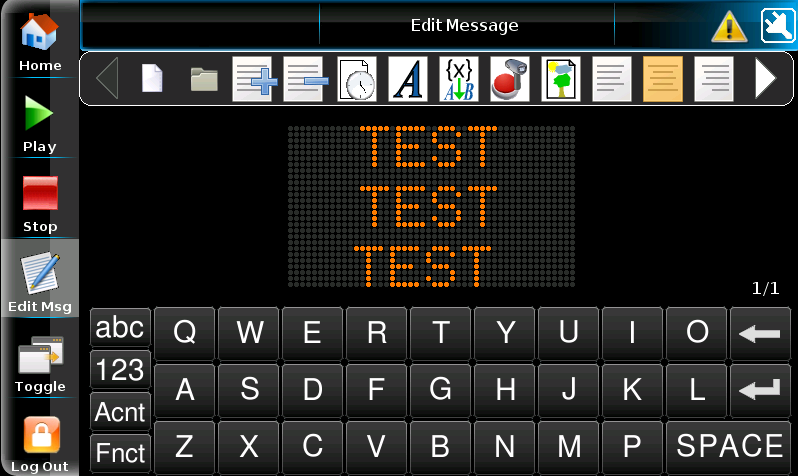

Figure 4 - Created Message

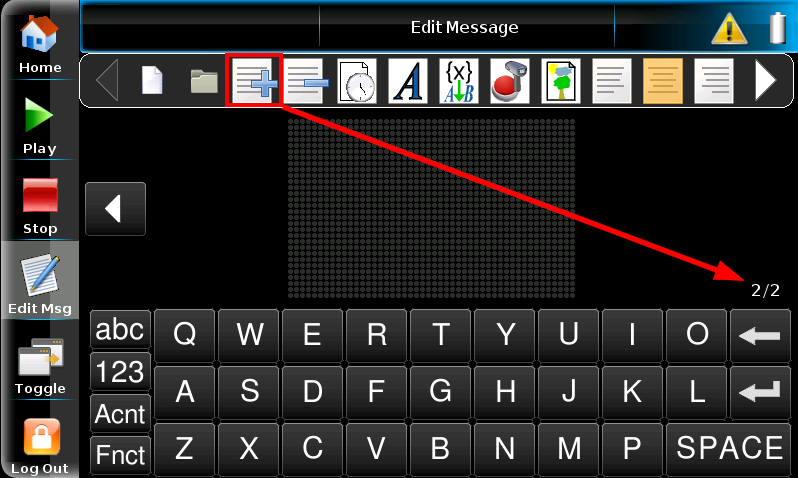

Figure 5 - Adding pages



4. Activate your message by pressing the Play icon and double-tapping the created message


Figure 6 - Play button

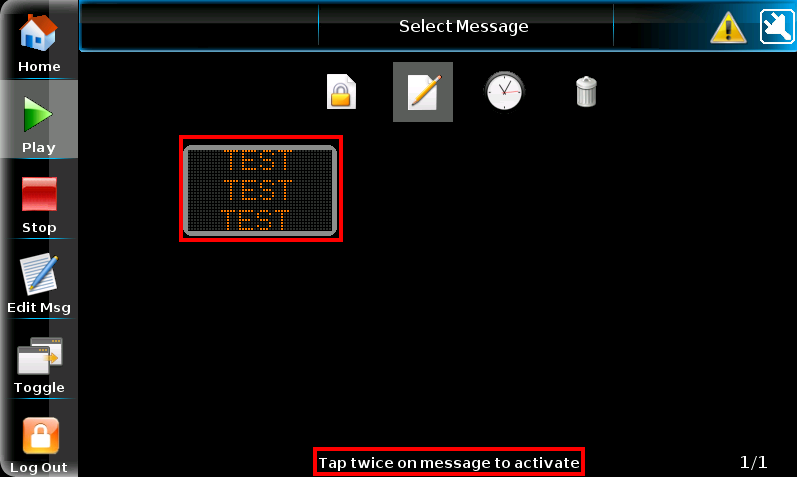

Figure 7 - Message selection


Figure 8 - Message playing



5. To blank the sign, press the stop button

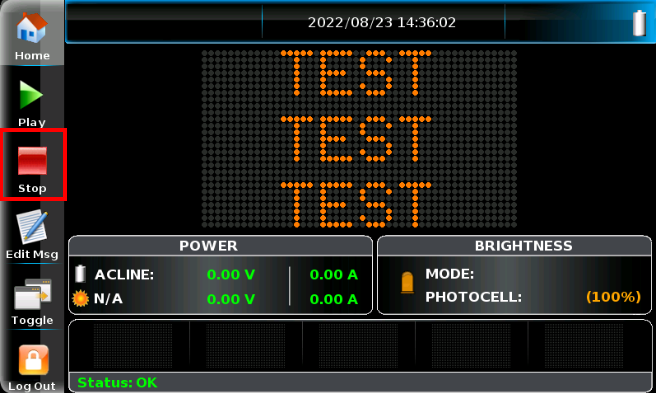

Figure 9 - Stop button



If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at support@ver-mac.com
