How to Create, Save, Activate and Blank Messages in JamLogic

Synopsis: When your Ver-Mac message boards are loaded into JamLogic, you will have the ability to create, save, activate and blank messages on your board.

• Level: Beginner
• Time required: 1-2 minutes
• Additional equipment required: PC/Laptop with the latest version of JamLogic installed on it

1. Right-click on the unit of your choice and press Message Editor

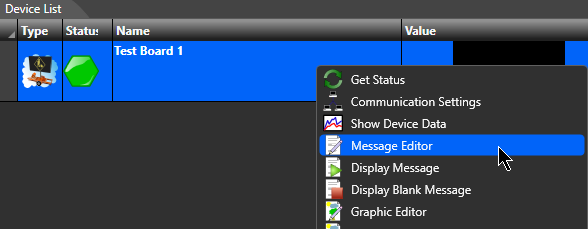

Figure 1 - Getting to the Message Editor

2. Type out the message of your choice

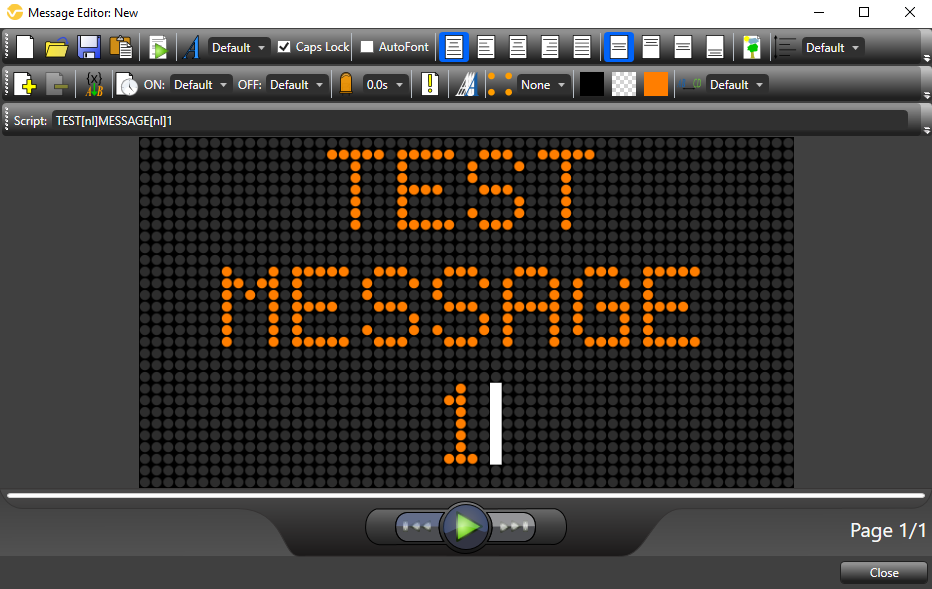

Figure 2 - Message Editor

3. Press save and give your message a name

Figure 3 - Save icon

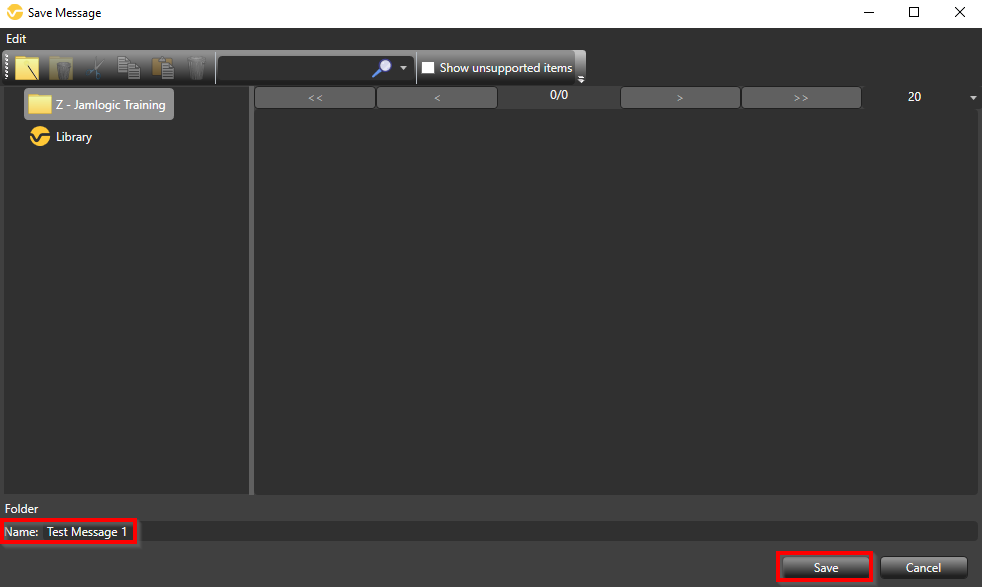

Figure 4 - Save screen

4. Activate your message

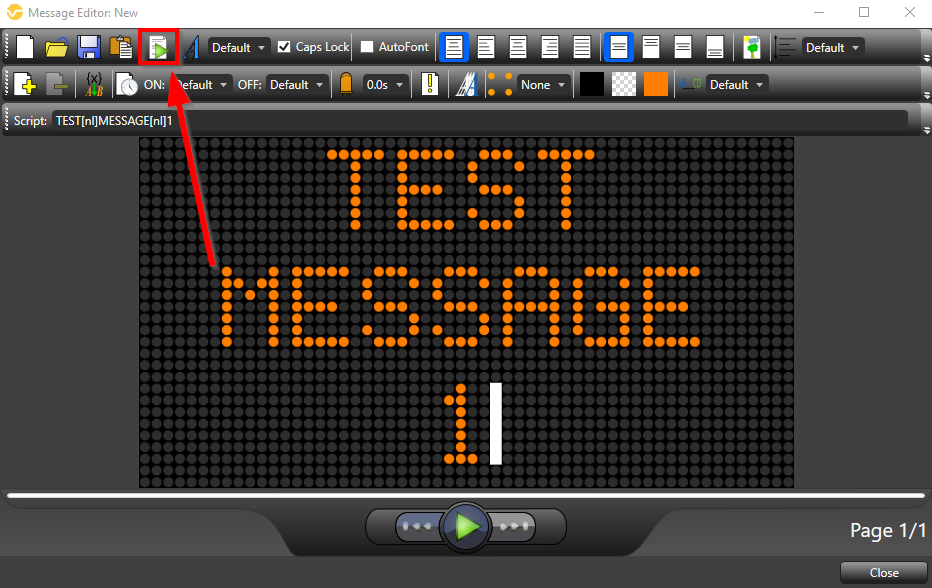

Figure 5 - Activate Message

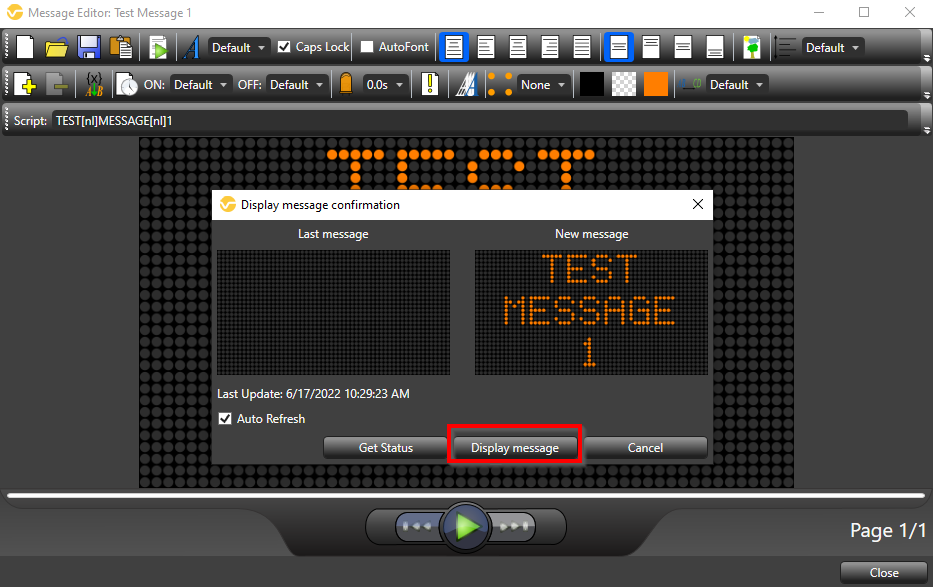

Figure 6 - Display Message

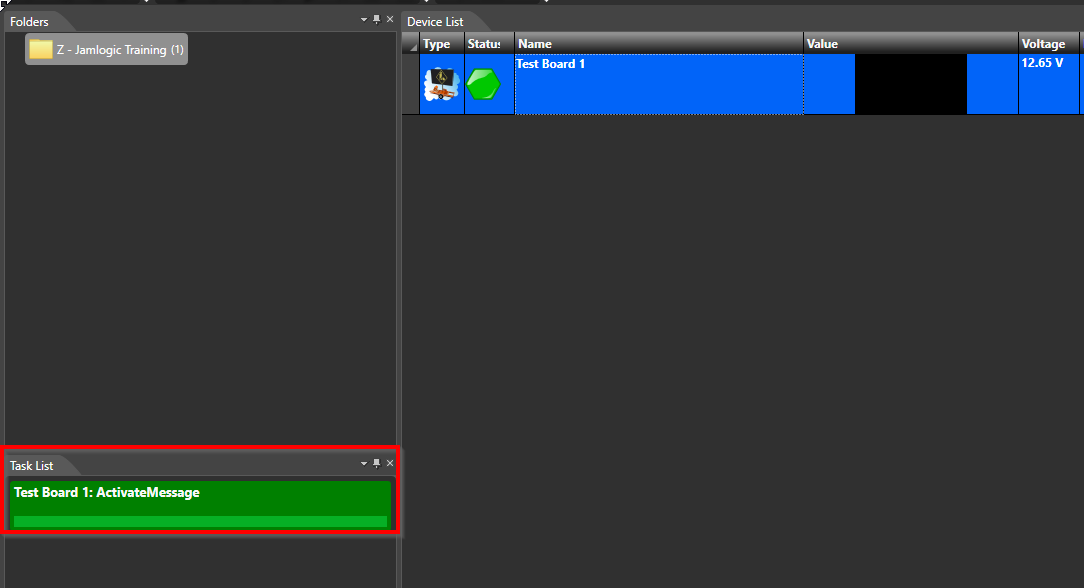

Figure 7 - Message Activation

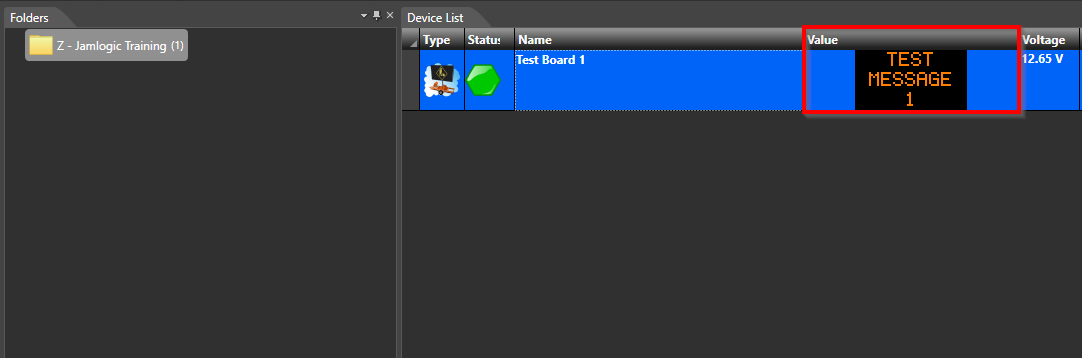

Figure 8 - Message Displaying

5. To blank your sign, right-click the unit and hit Display Blank Message

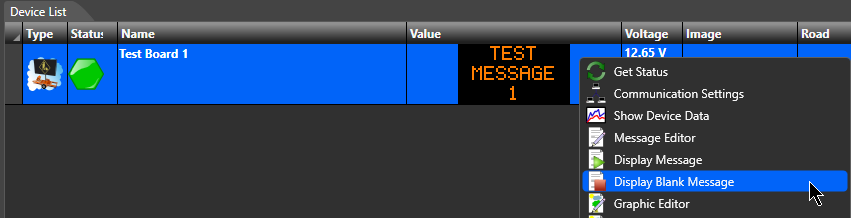

Figure 9 - Blank sign

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
