Integrated Modem Troubleshooting

Synopsis: On new Ver-Mac message boards, you will often encounter an integrated modem that is used to communicate remotely in our JamLogic software. If you ever encounter modem issues, you can refer to this guide to help isolate the problem.

• Level: Intermediate
• Time required: Time may vary
• Additional equipment required: Philips screwdriver

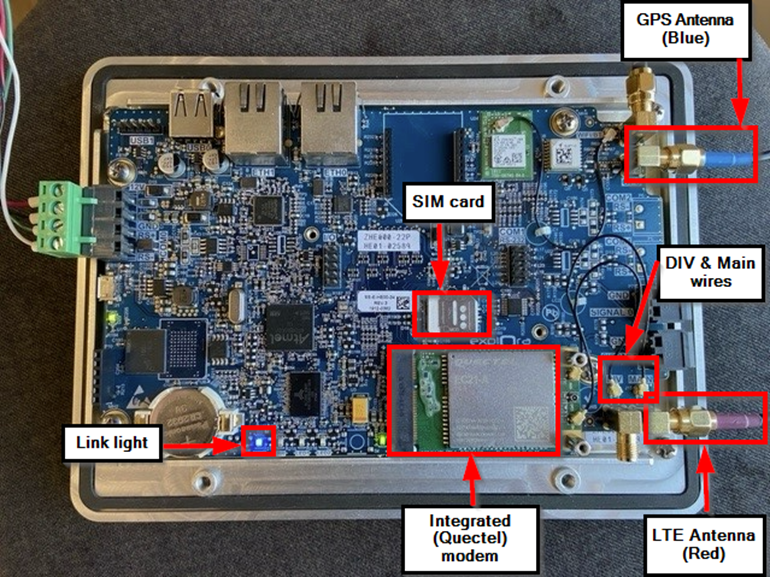

Figure 1 - Quectel modem wiring

1. Make sure the unit is on and that there is power going to the touchscreen

Note: You can use a voltmeter to get the voltage readings on the green connector plugged into the touchscreen. You should be getting 12+ volts.

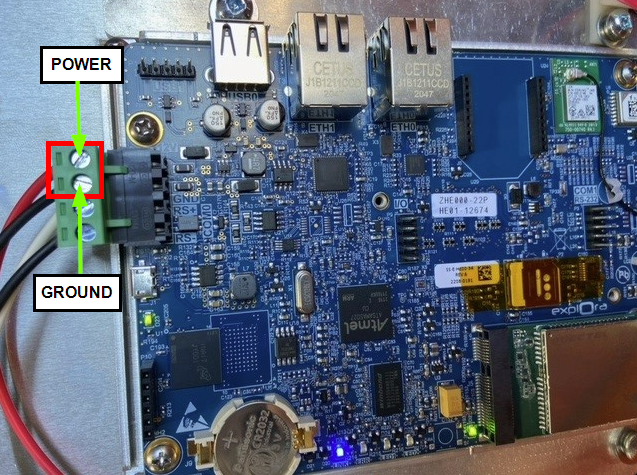

Figure 2 - Touchscreen power connector

2. Confirm there is a SIM card in the SIM slot

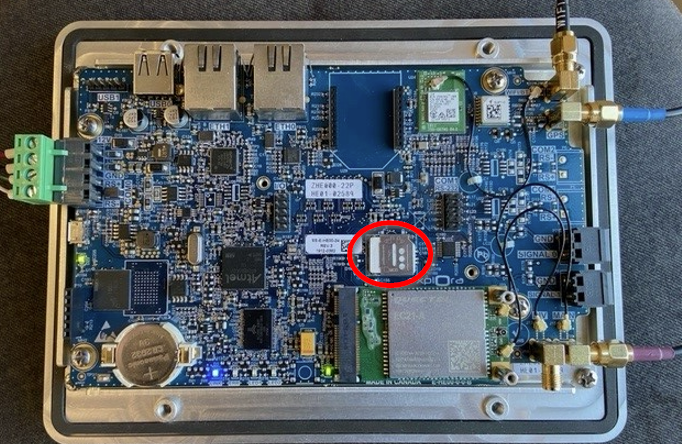

Figure 3 - SIM card

3. Make sure the link light is on and solid blue

Note: The blue link light is there to confirm that the SIM card is connected to the network. If you are not seeing the light, try rebooting your unit and waiting 15 minutes. If it still doesn't show up, try swapping the SIM card or the modem.

Figure 4 - Blue link light

4. Check the DIV & MAIN wires going from the modem to the circuit board of the touch screen

Figure 5 - DIV & MAIN wires

5. Verify LTE and GPS antennas are well connected

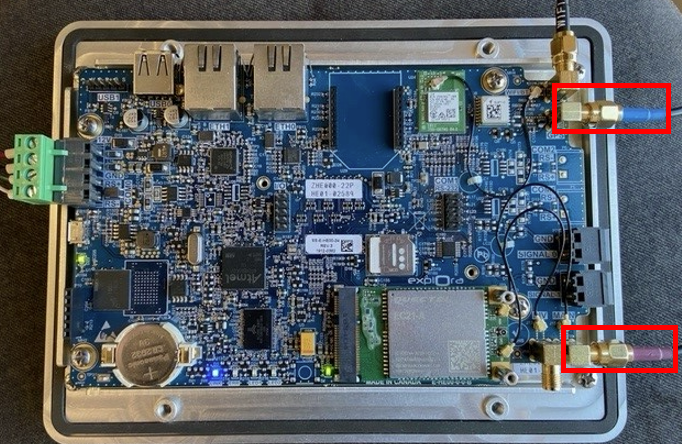

Figure 6 - GPS (blue) and LTE (red) antennas

6. On the touch screen, go to Toggle – Options – Modem and make sure the Ver-Mac modem is selected

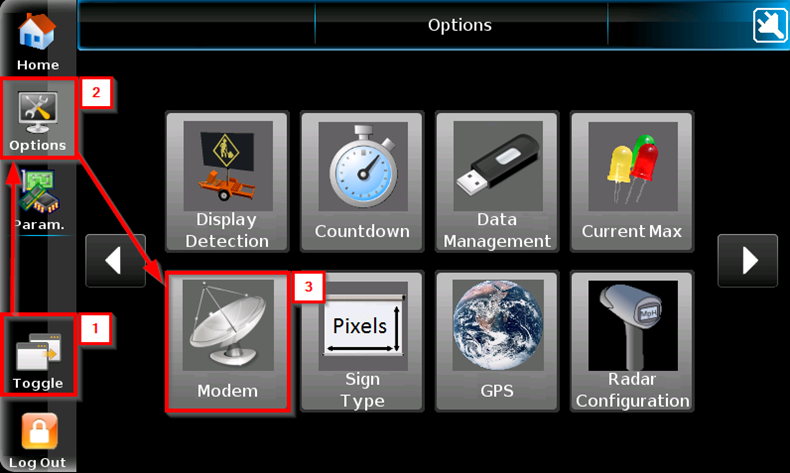

Figure 7 - Modem option

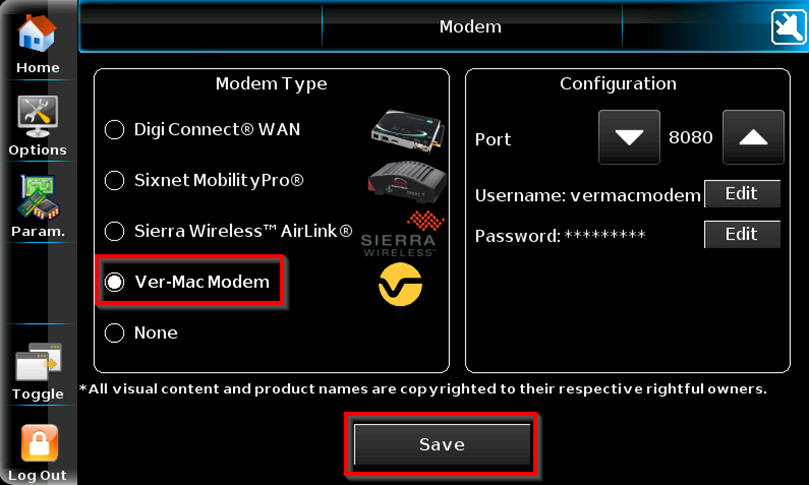

Figure 8 - Ver-Mac modem selection

7. Log into the touch screen, go to Toggle – Parameters – Comm. Parameters, and confirm that there is an IP address

Note: Unlike the WR-21 & 31 modems, the IP on the screen will be the ACTUAL IP of the modem, not the internal IP of the touchscreen

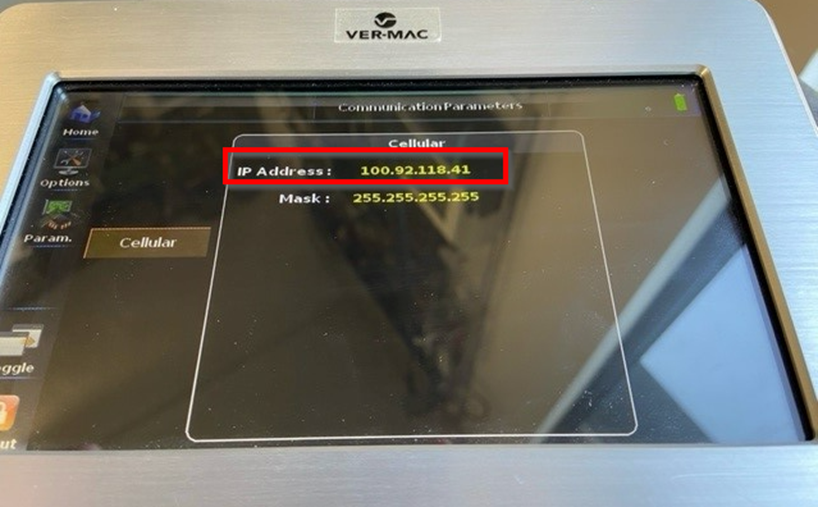

Figure 9 - IP address

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
