How to Test Photocells on a Message Board

Synopsis: The photocell is responsible for controlling the brightness of your equipment. If ever you are having brightness issues, it could be linked to a faulty photocell. Each unit has 2 photocells. They can be located on the outside of the sign case, inside the sign case, on the solar panel junction box, or on the back of the message board.

• Level: Easy
• Time required: 3-5 minutes
• Additional equipment required: Philips screwdriver

Different photocell locations

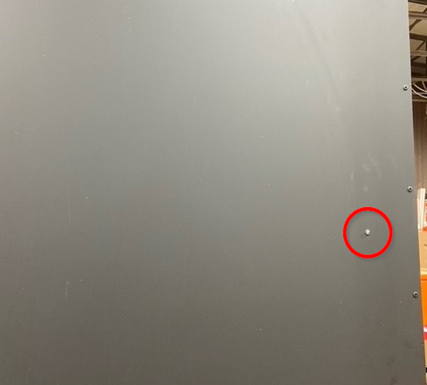

Figure 1 - Photocell on back of sign case

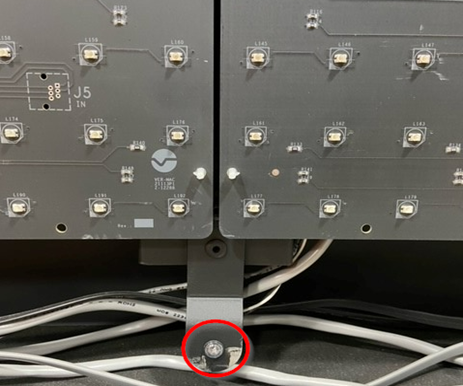

Figure 2 - Photocell on bottom middle of sign case (inside)

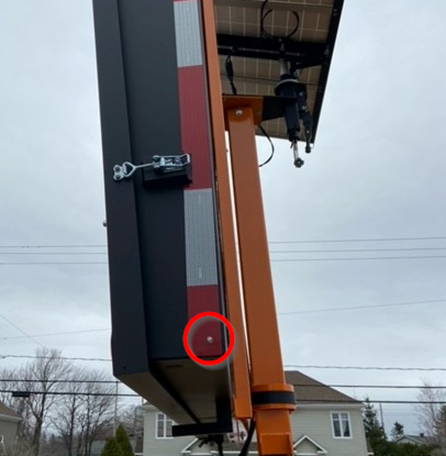

Figure 3 - Photocell on the outside of sign

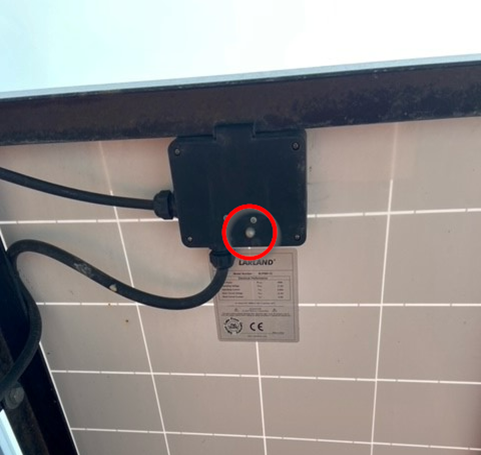

Figure 4 - Photocell under the solar panel

1. Log in to the V-Touch controller and press Toggle, then Options, then Maintenance

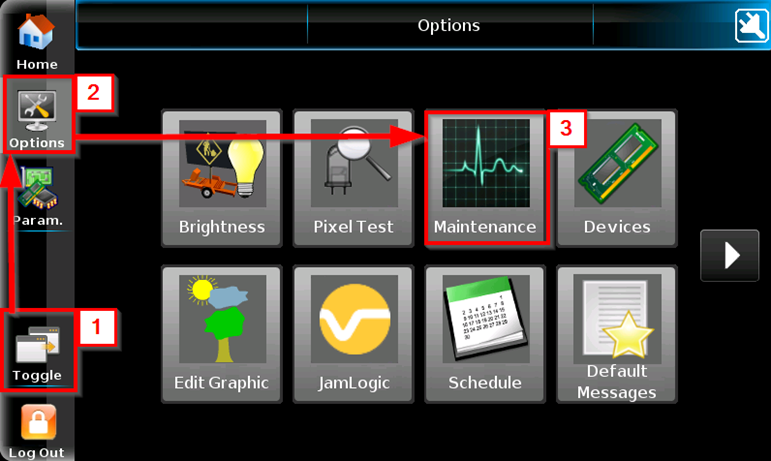

Figure 5 - How to get to maintenance

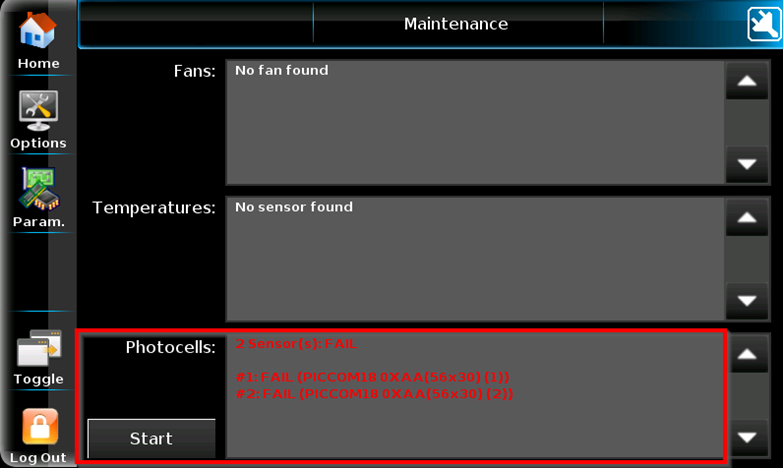

Figure 6 - Maintenance screen

2. To test the photocells, use a flashlight, shine it directly into the photocells, and press Start again

2.1. After shining light directly into the photocell, the percentage should start raising.

2.2. If photocell still fails, it is defective

2.3. Do this test one photocell at a time, it will also let you know which sensor is #1 and #2

3. Verify photocell wiring on the communication card, the wires will be located on pins 5 & 6, or directly on the communication card. Look for PH+ & PH-, or PH1 & PH2

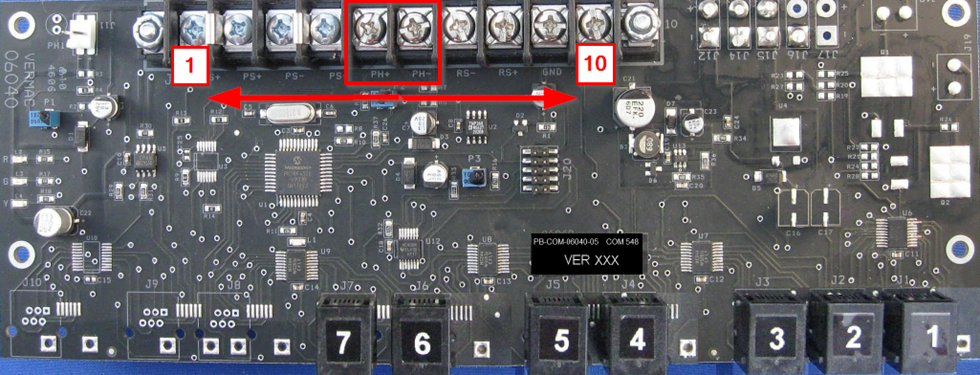

Figure 7 - Terminal strip on the communication card

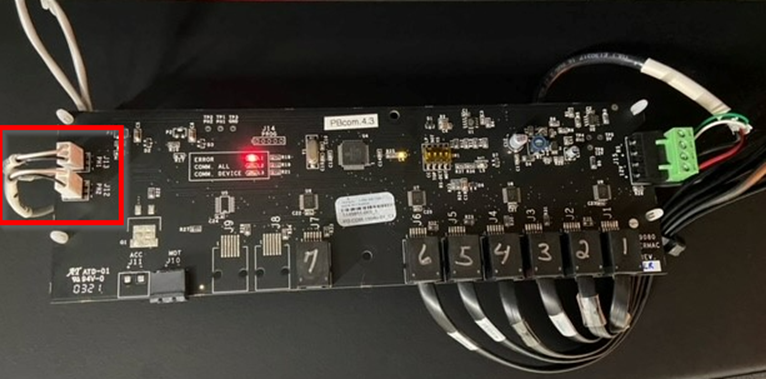

Figures 8 & 9 - Photocell 1 & 2 ports on communication cards

Note: If all tests are done right and connections are secure, and you are still seeing a photocell error, you will need to purchase a new photocell and replace the defective one.

If you still wish to keep using your message board, you can change the brightness from automatic to manual in the touch screen options.

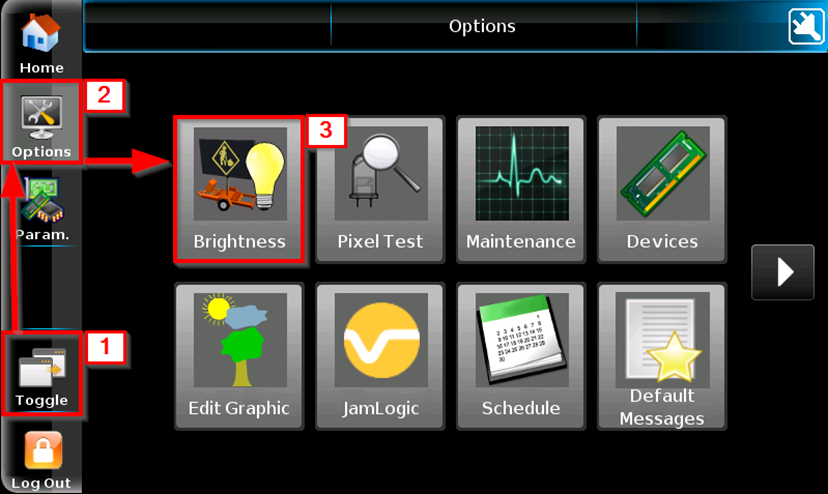

Figure 10 - How to get to the brightness option

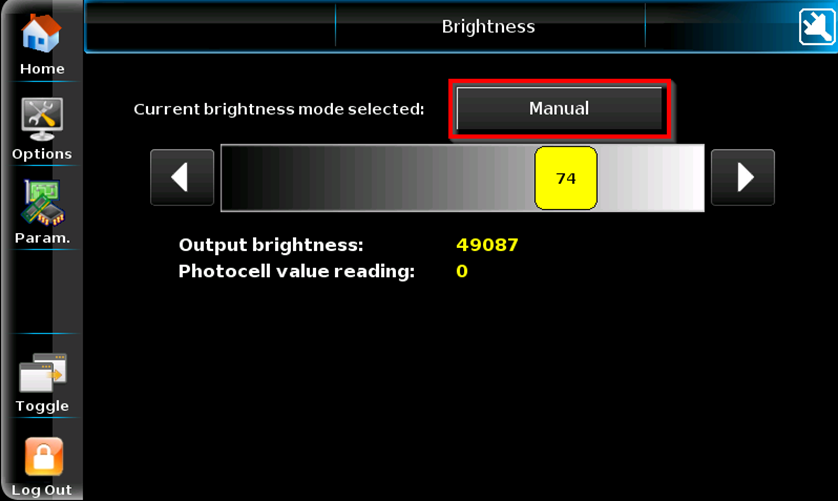

Figure 11 - Brightness mode

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
