Speed-Mac Deployment

Synopsis: The Speed-Mac VP (vertical panel) is a product that combines the Speed-Mac 2.0 with a vertical solar panel. This equipment can be set up by one person and will operate in all seasons without recharging, in most applications. This article will show the steps required to deploy it.

• Level: Easy
• Time required: 5 minutes
• Additional equipment required: Box screwdriver

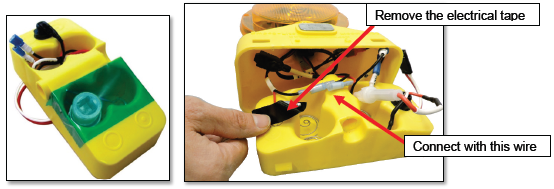

1. Remove the electrical tape and connect the main power wire

Figure 1 - Tape & power wire

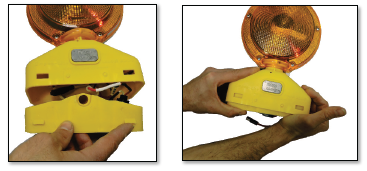

2. Close the casing. Make sure the wires (except main power connector) fit inside

Figure 2 - Casing

3. Unfold the vertical panel. Place your foot on one leg, raise the panel, then bring down the second leg

Figure 3 - Vertical panel deployment

4. Connect the Speed-Mac 2.0 and seat it on top of the vertical panel

Figure 4 - Powering & install the Speed-Mac 2.0

5. Tighten the Speed-Mac 2.0 using the box shipped with it and a box screwdriver

Figure 5 - Fastening the Speed-Mac 2.0

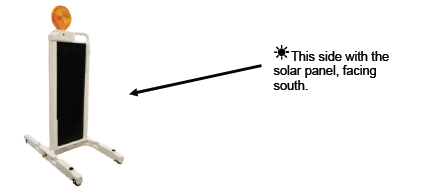

6. Turn the Vertical Panel South

Figure 6 - Vertical Panel orientation

7. Power the Speed-Mac 2.0 on & turn the lens towards oncoming traffic

Note: The lens should be at a 45 degree angle facing traffic. The lens allows for a 360 degree rotation.

Figure 7 - Power button

Figure 8 - Aiming the lens

Figure 9 - Marking

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
