Speed Trailer Programming

Synopsis: Using the V-Touch Controller inside of the sign case of your speed trailer, you will have the ability to program the minimum & maximum speeds that will display on your sign in your work zone.

• Level: Easy
• Time required: 5 minutes
• Additional equipment required: None

1. Power on the controller

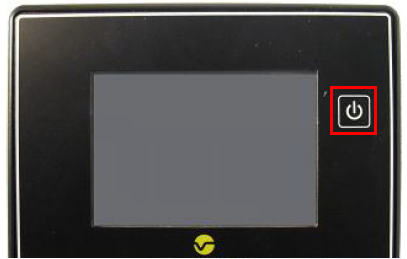

Figure 1 - Power button

2. Press the MIN | MAX | BLINK

Figure 2 - MIN | MAX | BLINK

3. Set the Minimum & Maximum speeds you wish to display on your sign. Press the checkmark to confirm your speed.

Note: You can also activate the Display Blink Trigger if you need the sign to flash when it goes passed a certain speed

Figure 3 - Display speeds

Figure 4 - Entering new speed

The radar will now pick up the speeds and display them according to the values you chose.

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
