JamLogic GPS Error Troubleshooting

Synopsis: In JamLogic, you may encounter a yellow icon indicating a GPS error. There are different factors that could cause this issue, from the deployment of the unit to the communication settings.

• Level: Easy
• Time required: Will vary depending on experience
• Additional equipment required:  None

1. Make sure the equipment is outside and deployed without any obstacles above

If your Ver-Mac equipment is indoors or deployed under obstacles such as trees, underpasses, or buildings, the GPS will not communicate.

2. Check the antennas on your modem

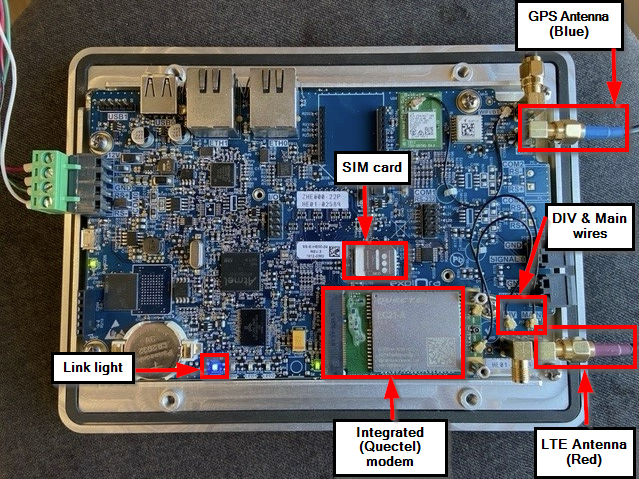

Figure 1 - Integrated modem wiring

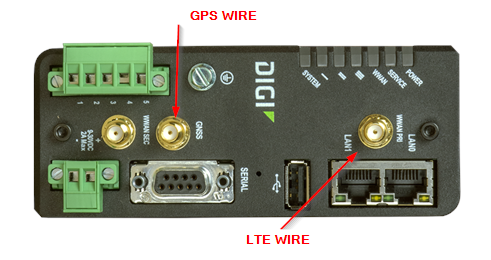

Figure 2 - Digi WR-31 antennas

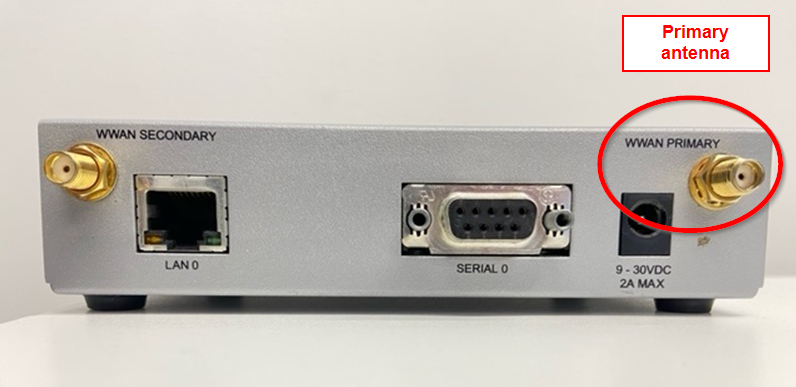

Figure 3 - Digi WR-21 Primary Antenna

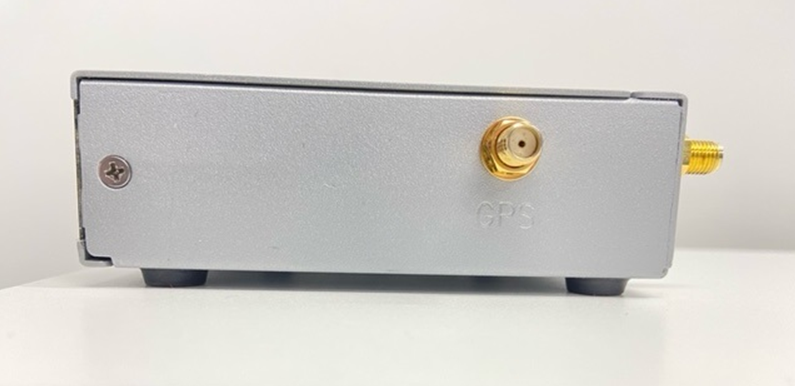

Figure 4 - Digi WR-21 GPS Antenna

3. Log into the touch screen and confirm the right modem type is selected by going to Toggle - Options - Modem

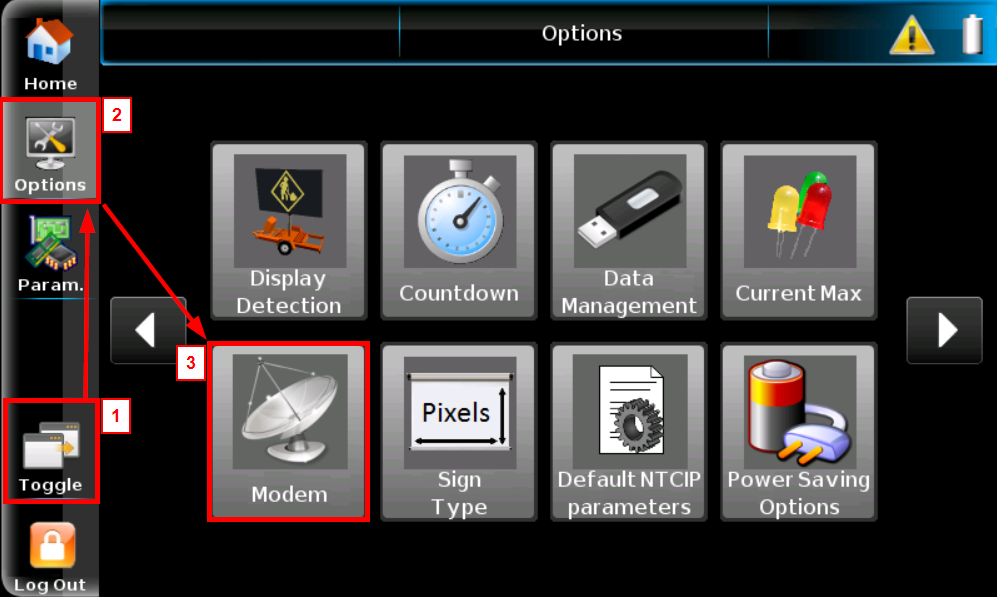

Figure 5 - Getting to the modem options

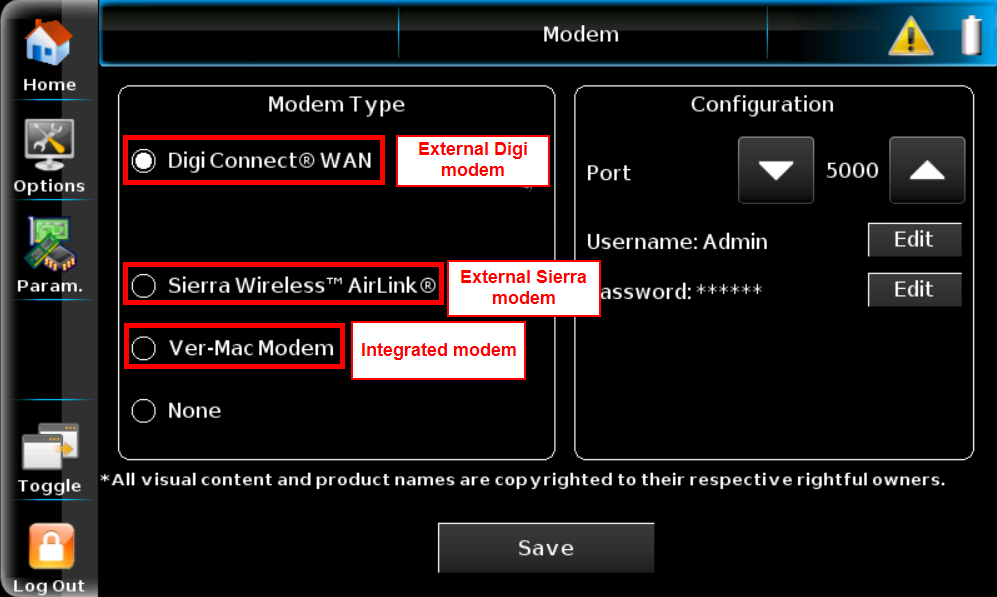

Figure 6 - Modem options

4. Ensure your communication settings are correctly set to the type of modem you have

Note: By double-clicking on your unit, you will open the communication settings. Scroll to the bottom for the GPS options.

• For external modems, you will set the modem type to your corresponding modem (Ex.: Digi, Sierra), then change the GPS source to modem. You will also need to enter the login (Admin) & password (444444)
• For integrated modems, leave the GPS source to Device

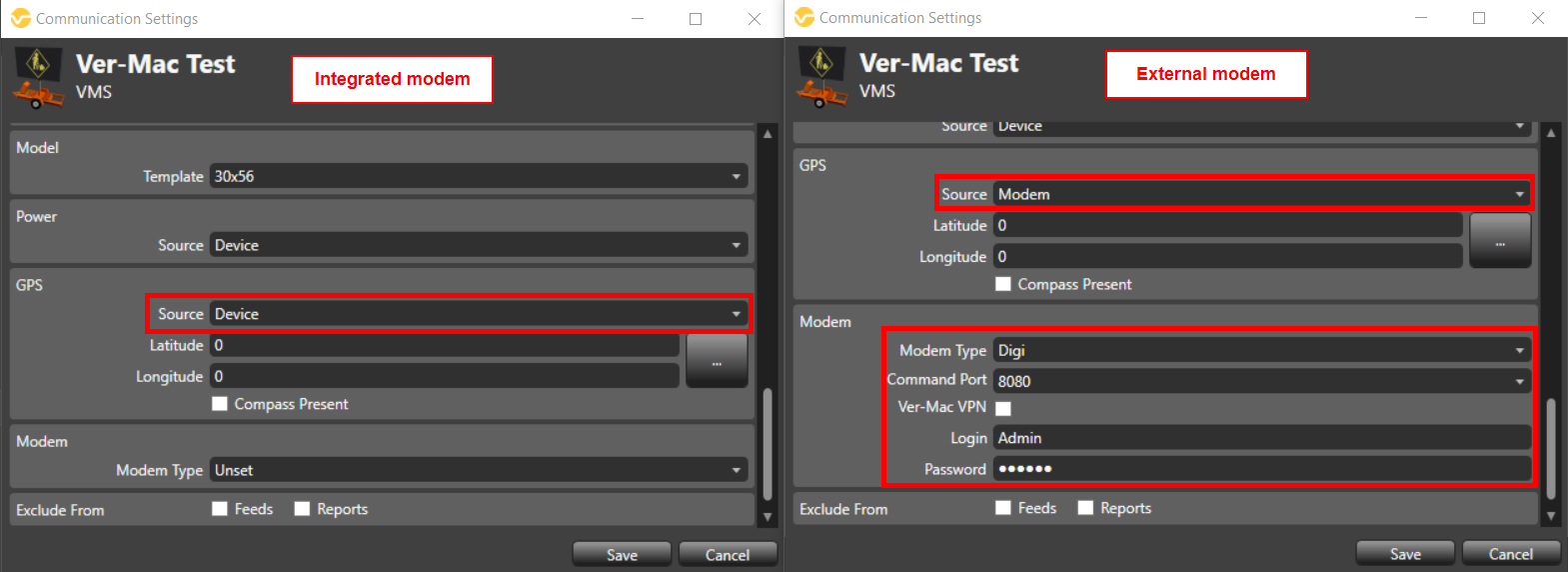

Figure 7 - Communication Settings

• For new Digi IX30 modems, use the following settings:
• Login: VermacReader, Password: vmReader-444444

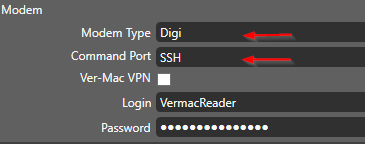

Figure 8 - Communication Settings for IX30 modems

If all of the above have been checked and you are still having GPS errors, it could be caused by a faulty antenna or a defective GPS module in the modem. The first recommended step would be to try swapping out the antenna.

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
