Viewing Device Data in JamLogic

Synopsis: The device data feature is a useful resource for identifying issues and pulling information in JamLogic. It will allow you get voltage information, GPS coordinates, show previous messages, and much more.

• Level: Easy
• Time required: 1-2 minutes
• Additional equipment required: None

                                                                        _

1. Right-click the unit of your choice and press Show Device Data

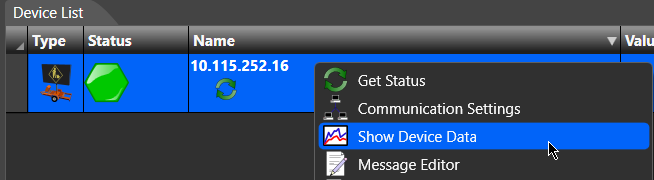

Figure 1 - Device data

2. Go to Parameters and double-click on the statistics you wish to view

Note: The common ones are Voltage - Battery, Voltage - Solar, and Position. If your unit is equipment with a radar, you will see the average speeds and vehicle count.

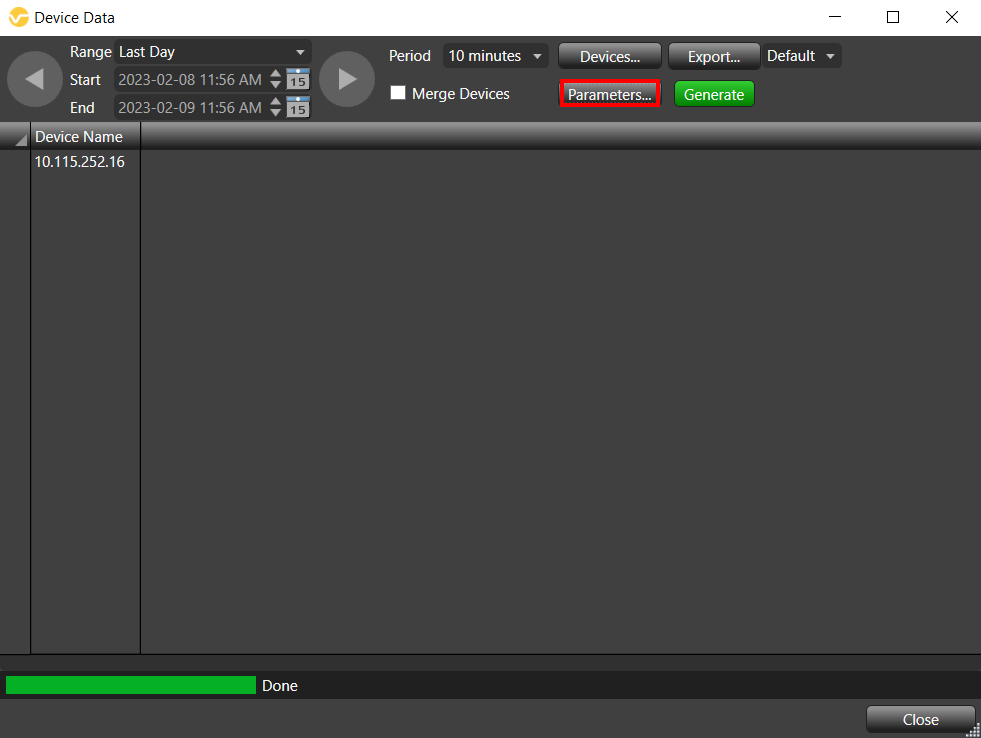

Figure 2 - Parameters

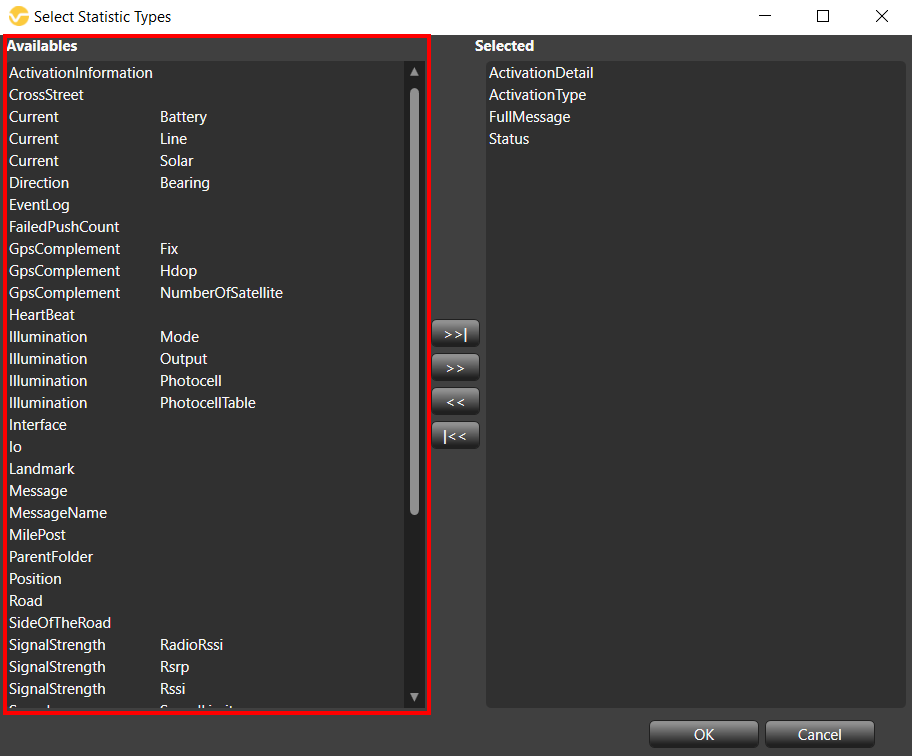

Figure 3 - Parameters list

3. Select the timeframe & press generate to view statistics

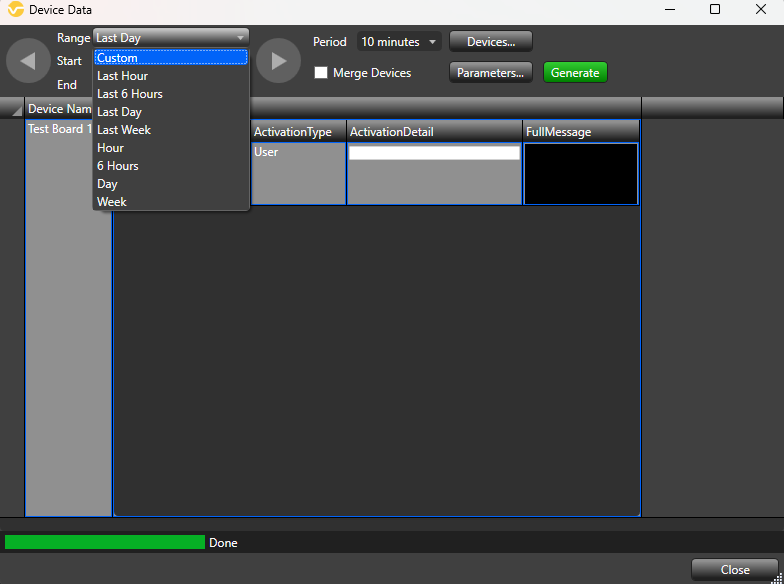

Figure 4 - Timeframe & generate button

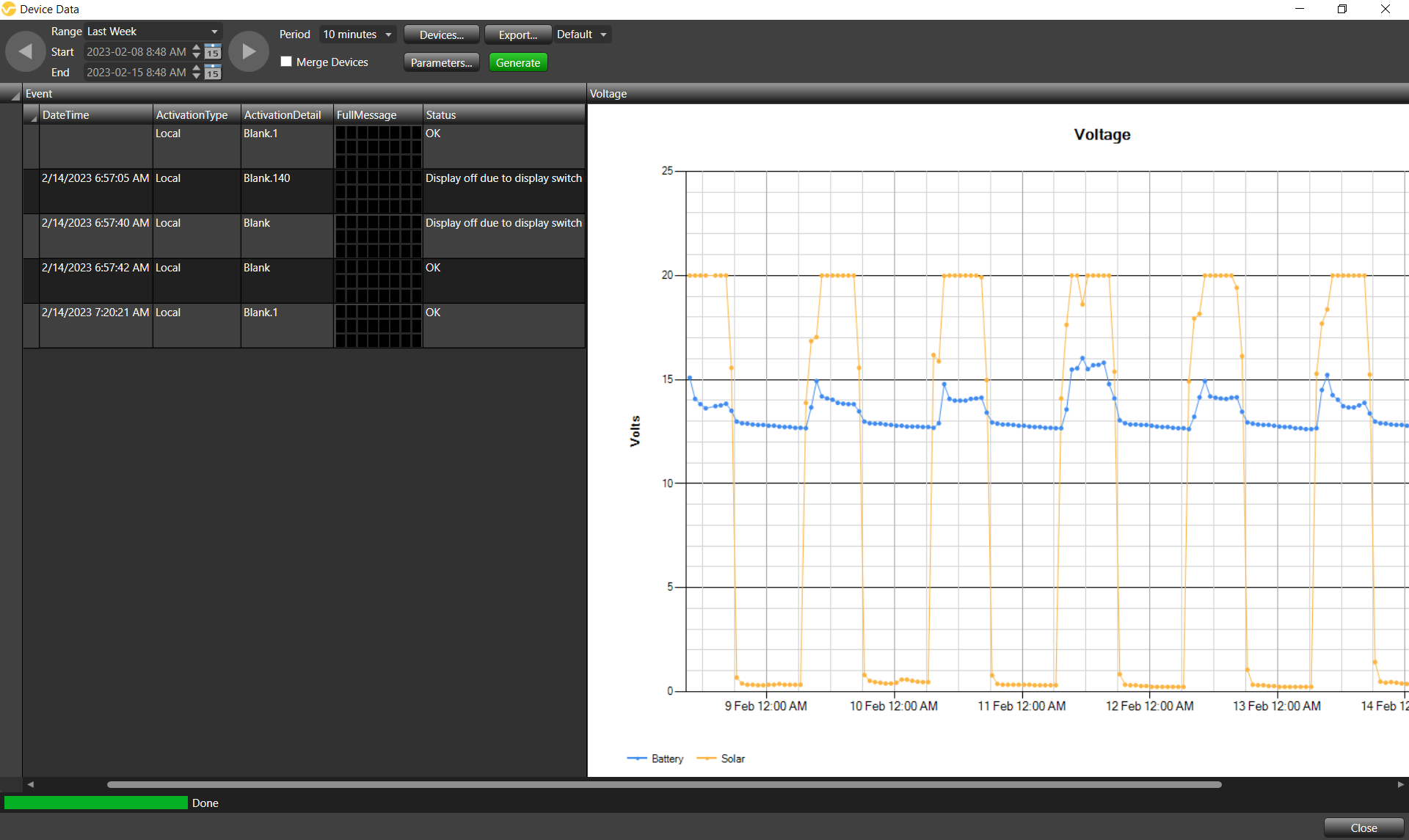

Figure 5 - Example of a voltage graphic

If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at [e-mail]
