How to Remove Integrated Modem from Touch Screen

Synopsis: For warranty or troubleshooting purposes, it is possible that you may need to remove your integrated modem from your touch screen.

  • Level: Easy
  • Time required: 1-2 minutes
  • Additional equipment required: None



1. Remove the SIM card

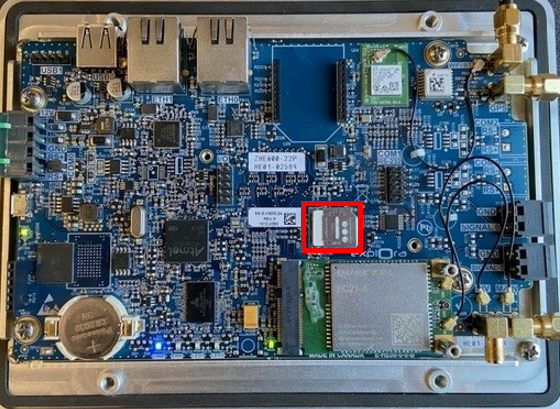

Figure 1 - SIM card



2. Remove the DIV and MAIN wires

Note: You can remove them easily by using a plastic object with a flat surface to wedge them out.

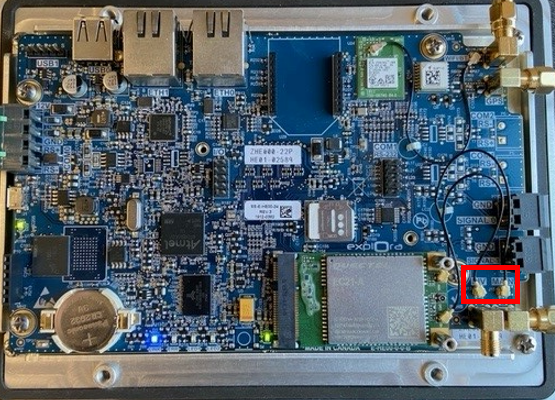

Figure 2 - DIV & MAIN



3. Remove the Quectel modem by unscrewing both screws on the right-hand side

Note: This can be done by hand.

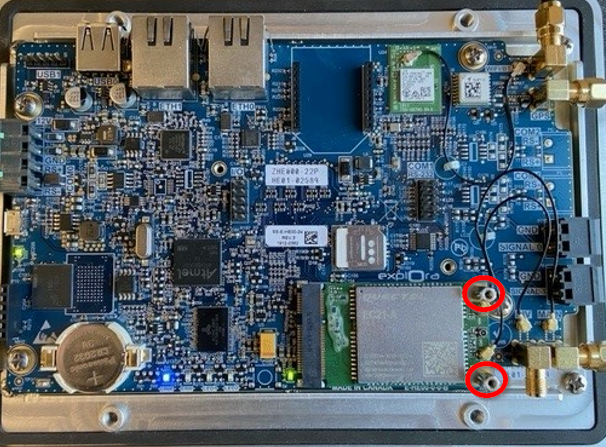

Figure 3 - Screws



If you require any additional help, contact our toll-free number at 1-888-488-7446 or email us at support@ver-mac.com
